Drop-In Replacements

Holt provides a number of alternate source solutions for Data Device Corporation (DDC®) MIL-STD-1553 Terminals and Transceivers. All devices are direct drop-in replacements with register-level software compatibility and API support for the terminal devices.



Holt also offers enhanced devices (HI-62003 and HI-62023) which are fully software compatible but include additional features such as Error-Correcting Code (ECC) SRAM. These devices, which come in compact 80-pin plastic packages (QFN and PQFP) offer a significant space and cost saving over the older traditional multi-chip module approach.





Software

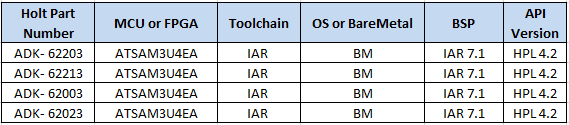

The following Application Development Kits support Holt's MIL-STD-1553 Application Programming Interface (API) library. Details are outlined on the respective product pages.







Note: DDC®, Mini-ACE®, Enhanced Mini-ACE®, Micro-ACE®, Mini-ACE® Mark3 and Total-ACE® are registered trademarks of Data Device Corporation, Bohemia, NY, USA. There is no affiliation between Data Device Corporation and Holt Integrated Circuits Inc.

DeviceDevice TypeDescriptionReleasedDatasheet
HI-6210xPBx DDC® Micro-ACE® TE Drop-in Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Micro-ACE® TE Family of MIL-STD-1553 Terminals. 2019
HI-622x3PBx DDC® Total-ACE®
Drop-in
Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Total-ACE® Family of MIL-STD-1553 Terminals. 2019
HI-6230xPBx DDC® Micro-ACE®
Drop-in
Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Micro-ACE® Family of MIL-STD-1553 Terminals. 2019
HI-6210xCx DDC® Mini-ACE® Mark3 Drop-in Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Mini-ACE® Mark3 Family of MIL-STD-1553 Terminals. 2019
HI-6230xCx DDC® Enhanced Mini-ACE® Drop-in Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Enhanced Mini-ACE® Family of MIL-STD-1553 Terminals. 2019
HI-6280xCx DDC® Mini-ACE® and Mini-ACE Plus® Drop-in Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Mini-ACE® and Mini-ACE Plus® Families of MIL-STD-1553 Terminals. 2023
HI-6250xCx DDC® Enhanced Mini-ACE® SSRT Drop-in Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Enhanced Mini-ACE® SSRT Family of MIL-STD-1553 Terminals. 2019
HI-6260xCx DDC® Mini-ACE® Mark3 SSRT Drop-in Direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Mini-ACE® Mark3 SSRT Family of MIL-STD-1553 Terminals. 2019
HI-1584 BU-67401L0C0x-102 Transceiver Drop-in 3.3V Operation. MIL-STD-1760 compatible. Uses isolation transformer ratio 1:2.07 for transformer coupled mode. Drop-in replacement for Data Device Corporation transceiver, BU-67401L0C0x-102. 2015
HI-1582 BU-63133L8 Transceiver
Drop-in
3.3V Operation. MIL-STD-1760 compatible. Uses isolation transformer ratio 1:2.5 for transformer coupled mode. Drop-in replacement for Data Device Corporation transceiver, BU-63133L8. 2013
HI-6178 Aeroflex CT2578
Drop-in
Direct pin compatible drop-in replacement for the Aeroflex CT2578 MIL-STD-1553 Simple Remote Terminal (SRT). 2023
HI-62003 BC / RT / MT BC/RT/MT or RT/MT Modes, ECC SRAM and integrated dual transceivers. Register-level software compatible with competitor legacy devices. 2018
HI-62023 Remote Terminal Remote Terminal, ECC SRAM and integrated dual transceivers. Register-level software compatible with competitor legacy devices. 2018
HI-62025 Remote Terminal Remote Terminal, ECC SRAM and integrated dual transceivers. Register-level software compatible with competitor legacy devices. 2019
