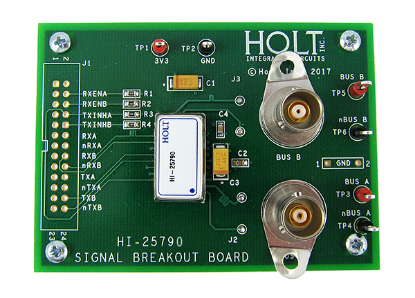

The HI-25790 is a low power CMOS dual transceiver with integrated transformers designed to meet the requirements of the MIL-STD-1553 / MIL-STD-1760 specifications. The dual transceivers with integrated transformers provide a low profile single part solution for interfacing a protocol IC or FPGA to a dual redundant MIL-STD-1553 bus. The part is a form, fit, function drop-in replacement for Holt’s popular HI-2579.
The transmitter section of each bus takes complementary CMOS / TTL Manchester II bi-phase data and converts it to differential voltages suitable for driving the integrated isolation transformer. Separate transmitter inhibit control signals are provided for each transmitter.
The receiver section of the each bus converts the 1553 bus differential data to complementary CMOS / TTL data suitable for inputting to a Manchester decoder. Each receiver has a separate enable input which can be used to force both receiver outputs to logic '0' (bus idle state).
The family of parts are available in Industrial -40oC to +85oC, or Extended, -55oC to +125oC temperature ranges.
