HI-3598PCIF

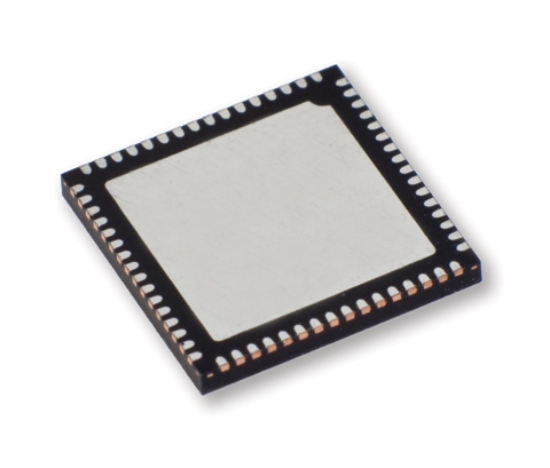

Picture of HI-3598PCIF
Package Description:64 Pin Plastic 9mm x 9mm Chip-Scale Package (QFN)
Temp Range:-40°C to +85°C
Flow:I
RoHS Compliant:Yes
Moisture Sensitivity Level:3
Theta JA (°C/W):21.8
Theta JB (°C/W):7.5
Theta JC (°C/W):N/A
Product Longevity:> 10 Years
The following quality & reliability information is available for part #HI-3598PCIF
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
0.8um CMOS2,1573.53E+0802.63.94E+08

Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Reliability Monitor Data - Results by Process Technology
16PCS1, 24PCS, 32PCS7, 40PCS, 44PCS, 48PCS6, 48PCS7, 64PCS, 72PCS, 80PCS (QFN)
Reliability TestNumber of Units TestedFailuresPercentage Failures / Total Units x 100Total Device Hrs / Cycles
High Accelerated Stress Test (HAST)7950076,320
Temperature Cycle (TC)1,990001,990,000
Autoclave2,43500255,360
High Temperature Storage (HTS)1,770001,770,535
Holt Incoming QA Plastic Monitor1,27200183,168
