HI-35981PQMF

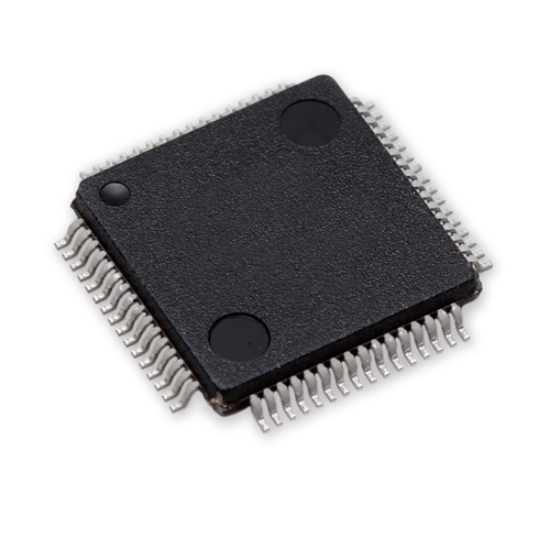

Picture of HI-35981PQMF
Package Description:64 Pin Plastic Quad Flat Pack (LQFP)
Temp Range:-55°C to +125°C
Flow:M
RoHS Compliant:Yes
Moisture Sensitivity Level:3
Theta JA (°C/W):37.8
Theta JB (°C/W):24.4
Product Longevity:> 10 Years
The following quality & reliability information is available for part #HI-35981PQMF
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
0.35um CMOS(c)3,1085.07E+0814.02.51E+08

Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Reliability Monitor Data - Results by Process Technology
32PTQS, 44PTQS, 48PQS, 52PTQS, 64PTQS, 80PTQS, 100PQS, 128PQS (LQFP)
Reliability TestNumber of Units TestedFailuresPercentage Failures / Total Units x 100Total Device Hrs / Cycles
High Accelerated Stress Test (HAST)1,03500106,290
Temperature Cycle (TC)1,215001,260,000
Autoclave1,11500124,320
High Temperature Storage (HTS)1,130001,175,670
Holt Incoming QA Plastic Monitor1,15300166,032
