HI-622x3PBx

The HI-622x3PBx Family is a fully integrated and dual redundant MIL-STD-1553 interface solution which includes 1553 protocol, SRAM and dual transceivers in a single plastic BGA package. The device is a direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Micro-ACE® TE Family of MIL-STD-1553 Terminals.

Software

The API Application Development Kits ADK-62203 and ADK-62213 include Holt's MIL-STD-1553 Application Programming Interface (API) library and support software development for the HI-6210xPBx family of devices. Details are outlined below.

Holt Part NumberMCU or FPGAToolchainOS or BareMetalBSPAPI Version
ADK- 62203ATSAM3U4EAIAR BMIAR 7.1HPL 4.2
ADK- 62213ATSAM3U4EAIAR BMIAR 7.1HPL 4.2



Features

  • Dual Redundant MIL-STD-1553A/B/1760 Channel
  • BC/RT/MT or RT/MT modes
  • Supports Simple System RT Mode
  • 64Kx17 or 4Kx16 SRAM
  • External RT Address Inputs
  • MIL-STD-1760 RT “Auto Boot”
  • Select Products Support McAir Protocol
  • RT only configuration available
  • Built-in Self-Test
  • Generic 8/16-bit Processor Interface
  • -40°C to +85°C or -55°C to +125°C
    • No Limitations on transmit duty cycle
  • PBGA-324
    • 20.7mm x 20.7mm x 3.1mm



Application Benefits

  • Simplified Board Design and Layout
  • Third Party RT Validated
  • Single Die for Improved Reliability
  • Cost Effective Direct Drop-in Replacement for DDC® Micro-ACE® TE
  • Fully Software Compatible with DDC® ACE, Mini-ACE®, Enhanced Mini-ACE®, Micro-ACE®, Mini-ACE® Mark3 and Total-ACE®

Note: DDC®, Mini-ACE®, Enhanced Mini-ACE®, Micro-ACE®, Mini-ACE® Mark3 and Total-ACE® are registered trademarks of Data Device Corporation, Bohemia, NY, USA.  There is no affiliation between Data Device Corporation and Holt Integrated Circuits Inc.

Part #Package DescriptionTemp RangeFlowMoisture Sensitivity LevelRoHS Compliant
HI-62203PBI312 Pin Plastic BGA-40°C to +85°CI3No
HI-62203PBIF312 Pin Plastic BGA-40°C to +85°CI3Yes
HI-62203PBT312 Pin Plastic BGA-55°C to +125°CT3No
HI-62203PBTF312 Pin Plastic BGA-55°C to +125°CT3Yes
HI-62213PBI312 Pin Plastic BGA-40°C to +85°CI3No
HI-62213PBIF312 Pin Plastic BGA-40°C to +85°CI3Yes
HI-62213PBT312 Pin Plastic BGA-55°C to +125°CT3No
HI-62213PBTF312 Pin Plastic BGA-55°C to +125°CT3Yes
Picture of ADK-62203: Evaluation Board for HI-62203 BC/RT/MT 64K RAM
ADK-62203: Evaluation Board for HI-62203 BC/RT/MT 64K RAM
The ADK-62203 2-board assembly and C project reference design provides a ready-to-run evaluation platform demonstrating operation of Holt's HI-62203 BC/RT/MT terminal device. The HI-62203 is a direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Total-ACE® Family of MIL-STD-1553 Terminals. The board comes complete with Holt’s API runtime library, included as executable object code. The software is compatible with existing competitor solutions and source code is available on request with a signed Software License Agreement.
More Information
Request a Demo Kit

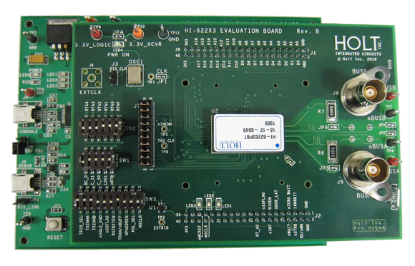

Picture of ADK-62213: Evaluation Board for HI-62213 BC/RT/MT 4K RAM
ADK-62213: Evaluation Board for HI-62213 BC/RT/MT 4K RAM
The ADK-62213 2-board assembly and C project reference design provides a ready-to-run evaluation platform demonstrating operation of Holt's HI-62213 BC/RT/MT terminal device. The HI-62213 is a direct pin compatible drop-in replacement for the Data Device Corporation (DDC®) Total-ACE® Family of MIL-STD-1553 Terminals. The board comes complete with Holt’s API runtime library, included as executable object code. The software is compatible with existing competitor solutions and source code is available on request with a signed Software License Agreement.
More Information
Request a Demo Kit
