HI-8428PSM

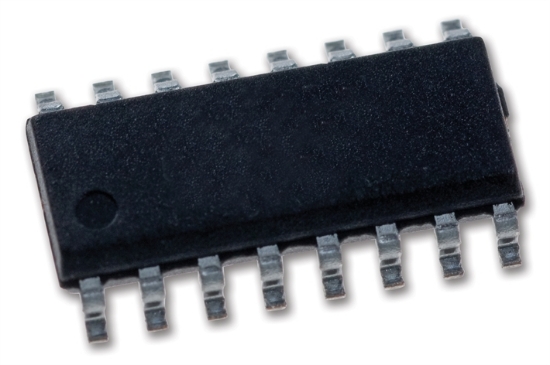

Picture of HI-8428PSM
Package Description:16 Pin Plastic ESOIC - NB
Temp Range:-55°C to +125°C
Flow:M
RoHS Compliant:No
Moisture Sensitivity Level:1
Theta JA (°C/W):16.8
Theta JB (°C/W):11.9
Theta JC (°C/W):N/A
Number of Channels:8
Product Longevity:> 10 Years
Sensing:Open / Ground or 28V / Open, each channel individually configurable
The following quality & reliability information is available for part #HI-8428PSM
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
0.6um CMOS-SOI(c)4,4901.15E+0933.62.76E+08

Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Reliability Monitor Data - Results by Process Technology
8HN, 8HNE, 14HN, 14HNE, 16HN, 16HNE, 16HW, 16HWE, 18HW, 20HW, 20HWE, 24HW, 28HW (SOIC)
Reliability TestNumber of Units TestedFailuresPercentage Failures / Total Units x 100Total Device Hrs / Cycles
High Accelerated Stress Test (HAST)3,28600322,386
Temperature Cycle (TC)4,065004,065,000
Autoclave2,84500327,885
High Temperature Storage (HTS)3,376003,339,685
Holt Incoming QA Plastic Monitor6,27400903,456
