HI-8436PQI

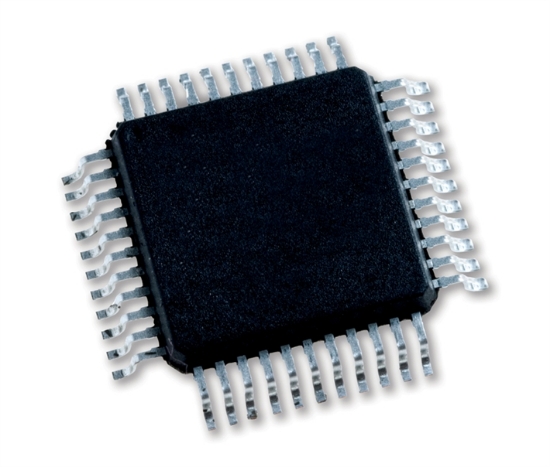

Picture of HI-8436PQI
Package Description:44 Pin Plastic Quad Flat Pack (MQFP)
Temp Range:-40°C to +85°C
Flow:I
RoHS Compliant:No
Moisture Sensitivity Level:3
Theta JA (°C/W):33.49
Theta JB (°C/W):25.44
Theta JC (°C/W):N/A
Number of Channels:32
Product Longevity:> 10 Years
Sensing:Open / Ground or 28V / Open configurable in 4 blocks of 8 channels
The following quality & reliability information is available for part #HI-8436PQI
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
0.6um CMOS-SOI(c)4,2951.12E+0933.72.69E+08

Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Reliability Monitor Data - Results by Process Technology
44PQS, 44PMQS, 52PQS (MQFP)
Reliability TestNumber of Units TestedFailuresPercentage Failures / Total Units x 100Total Device Hrs / Cycles
High Accelerated Stress Test (HAST)2,20510.05%211,680
Temperature Cycle (TC)2,835002,835,000
Autoclave2,16000216,000
High Temperature Storage (HTS)2,28510.05%2,285,545
Holt Incoming QA Plastic Monitor3,37300485,712
