Octal ARINC 429 Receiver Development Kit with SPI Host Interface
Aliso Viejo, CA (March 22, 2023) – Holt Integrated Circuits today announced the release of a new ARINC 429 Development Kit, ADK-35981. The evaluation board demonstrates the operation of Holt's HI-35981, an Octal ARINC 429 Receiver with Label Recognition and a SPI Interface.

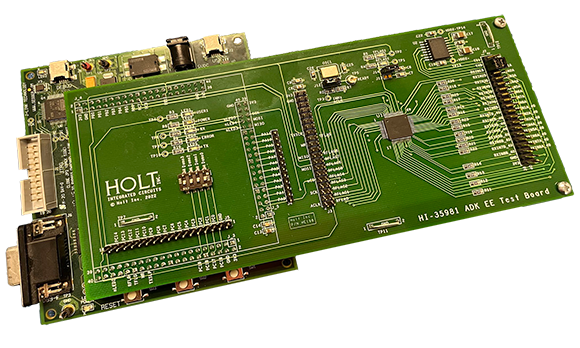

The kit is composed of two boards, a lower processor mother board and an upper HI-35981 demonstration board. The 2-board assembly and C project reference design provides a ready-to-run evaluation platform that demonstrates the basic operation of the device. The kit includes full project software and source files and for convenience, the IAR Systems Embedded Workbench® for ARM and a fully integrated debug interface for the ARM Cortex M3 microcontroller. A version of the demonstration software is pre-programmed into the microcontroller flash and the board is operational right out of the box without installing or running the provided software development tools.
The HI-35981 device is an enhanced version of Holt’s well-established HI-35980 (HI-3598) family with additional features and functionality. The user-programmable label filtering capability has been expanded from 16 labels to all 256 labels, and the 4-word deep receive FIFO has been increased to 32 words deep. In addition, a 32-word deep transmit FIFO has been added, significantly increasing the transmit capability from the single-word buffer on the existing device.
Each receiver channel has an integrated line receiver, allowing direct connection to an ARINC 429 bus, and a choice of inputs to enable the use of external resisters for lightning protection.
“This board provides our customers with a comprehensive reference design for ARINC 429 receivers,” said George Noh, Director of Sales and Marketing at Holt. “The kit includes full project software and source files and is operational right out of the box without installing or running the provided software development tools.”
To request information on Holt’s ARINC 429, CAN, MIL-STD-1553 and other product lines, readers should contact Holt at (949) 859-8800, by e-mail at info@holtic.com, or visit the Holt website at www.holtic.com.
Located in Aliso Viejo, CA, Holt Integrated Circuits is a major supplier of ICs for avionics and military aircraft data bus and display applications. The company's products are specified by more than 400 manufacturers worldwide and are employed in flight control, navigation, engine management, communications, safety equipment, and in-flight entertainment systems.
Holt's range of ICs supporting the ARINC 429 standard is the widest in the industry, and its MIL-STD-1553 transceivers are recognized as the industry's smallest, having the lowest power consumption. In addition, Holt MIL-STD-1553 integrated terminals offer the most compact, cost effective solution available, integrating protocol, transceiver and transformers in a single 15x15mm package.
Holt also offers its MIL-STD-1553 protocol as a DAL A, DO-254 Certifiable IP Core. Other data bus products include ARINC 717, CAN (ARINC 825), Ethernet, RS-485/422, discrete-to-digital and analog switches.
Select products are available to DSCC SMD specifications. Holt also offers product compliant to the EU Directive 2011/65/EU (“RoHS 2”).
Holt Integrated Circuits is AS9100D:2016 and ISO 9001:2015 registered.
