HI-8457PSM

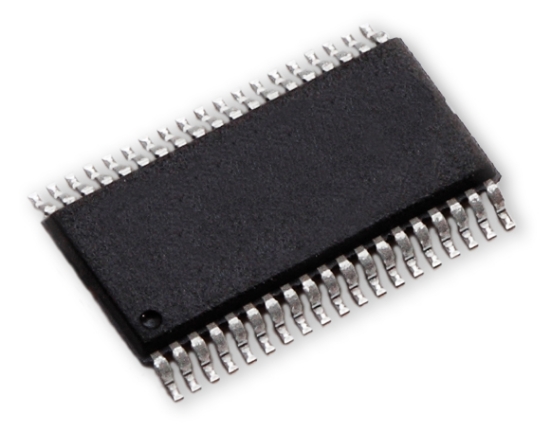

Picture of HI-8457PSM
Package Description:38 Pin Plastic TSSOP
Temp Range:-55°C to +125°C
Flow:M
RoHS Compliant:No
Moisture Sensitivity Level:3
Theta JA (°C/W):59.2
Theta JB (°C/W):41.7
Product Longevity:> 10 Years
The following quality & reliability information is available for part #HI-8457PSM
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
1.0um CMOS-SOI(c)1,6802.52E+0803.62.74E+08

Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Reliability Monitor Data - Results by Process Technology
20HS, 24HS, 24HT, 38HS (TSSOP)
Reliability TestNumber of Units TestedFailuresPercentage Failures / Total Units x 100Total Device Hrs / Cycles
High Accelerated Stress Test (HAST)1,39500133,920
Temperature Cycle (TC)1,710001,710,000
Autoclave1,39500142,560
High Temperature Storage (HTS)1,590001,590,045
Holt Incoming QA Plastic Monitor1,06200152,928
