HI-2130

Name: HI-2130
Availability: OutOfStock

The HI-2130 combines the functionality of Holt’s HI-6130 16-bit parallel bus interface and HI-6131 SPI devices, integrating MIL-STD-1553 protocol logic, dual transceivers and dual transformers in a single compact package.

The low profile 15 x 15 x 4.4 mm HI-2130LBxx is the world's smallest single package 1553 terminal with integrated transformers and is ideal for use in applications such as Switched Mezzanine Card (XMC) or PCI Mezzanine Card (PMC) assemblies. The BGA package is available in both RoHS compliant and Sn/Pb configurations, giving customers a solution for tin-lead assemblies without expensive re-balling.

The HI-2130GxxF provides customers with a hermetic, metal lid, RoHS compliant option.

The devices include the entire signal I/O set of HI-6130 and HI-6131, with the addition of a new input signal for selecting parallel bus or SPI host interface. Two pairs of transformer output signals connect directly to the MIL-STD-1553 Bus A and Bus B stubs.

The parts are available in Industrial -40^oC to +85^oC, or Extended, -55^oC to +125^oC temperature ranges.

Refer to the HI-6130 datasheet for full functional description and operation.

Software

Various software support options are available for the HI-2130. A development kit (ADK-6130) includes low level software that demonstrates the broad features of the device. The (ADK-6130-2), includes Holt's MIL-STD-1553 Application Programming Interface (API) library for an external bus interface (EBI), and the (ADK-6131) API Application Development Kit, ADK-6131API, includes the API library for a SPI host interface. In addition, Linux and Bare Metal (ARM) Software Drivers are available. Details are outlined below.

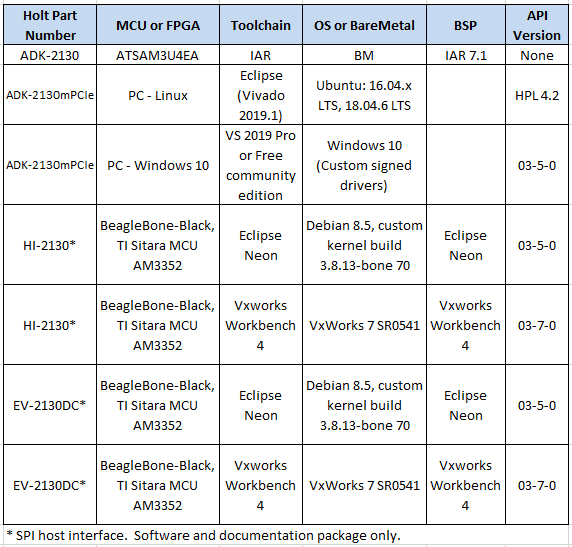

Holt Part Number	MCU or FPGA	Toolchain	OS or BareMetal	BSP	API Version
ADK-2130	ATSAM3U4EA	IAR	BM	IAR 7.1	None
ADK-2130mPCIe	PC - Linux	Eclipse (Vivado 2019.1)	Ubuntu: 16.04.x LTS, 18.04.6 LTS		HPL 4.2
ADK-2130mPCIe	PC - Windows 10	VS 2019 Pro or Free community edition	Windows 10 (Custom signed drivers)		03-5-0
HI-2130*	BeagleBone-Black, TI Sitara MCU AM3352	Eclipse 2023-3 Newer	5.10.186-bone- rt-r76 Debian GNU/Linux 11 (bullseye)	Eclipse 2023-3 Newer	HPL 4.3
EV-2130DC*	BeagleBone-Black, TI Sitara MCU AM3352	Eclipse 2023-3 Newer	5.10.186-bone- rt-r76 Debian GNU/Linux 11 (bullseye)	Eclipse 2023-3 Newer	HPL 4.3
HI-2130*	BeagleBone-Black, TI Sitara MCU AM3352	Vxworks Workbench 4	VxWorks 7 SR0541	Vxworks Workbench 4	03-7-0
EV-2130DC*	BeagleBone-Black, TI Sitara MCU AM3352	Vxworks Workbench 4	VxWorks 7 SR0541	Vxworks Workbench 4	03-7-0

* SPI host interface. Software and documentation package only.

Features

Combined functionality of HI-6130 and HI-6131 in a single package with integrated transformers
MIL-STD-1553B/C, MIL-STD-1760, SAE AS15531A and STANAG 3838 compliant
Third Party RT Validated
Smallest footprint MIL-STD-1553/1760 solution available (includes transformers)
Low profile package solution suitable for PMC and XMC applications
Hermetically sealed die option (MSL1) available
Extended temperature range, -55ºC to +125ºC
Less expensive than traditional multi-chip modules
DO-254 certifiable

Part #	Package Description	Temp Range	Flow	Moisture Sensitivity Level	RoHS Compliant
HI-2130GBIF	121 Ball Grid Array (BGA)	-40°C to +85°C	I	1	Yes
HI-2130GBTF	121 Ball Grid Array (BGA)	-55°C to +125°C	T	1	Yes
HI-2130GPIF	121 Pin Grid Array (PGA)	-40°C to +85°C	I	1	Yes
HI-2130GPTF	121 Pin Grid Array (PGA)	-55°C to +125°C	T	1	Yes
HI-2130LBI	121 Low Profile Ball Grid Array (BGA)	-40°C to +85°C	I	3	No
HI-2130LBT	121 Low Profile Ball Grid Array (BGA)	-55°C to +125°C	T	3	No
HI-2130LBIF	121 Low Profile Ball Grid Array (BGA)	-40°C to +85°C	I	3	Yes
HI-2130LBTF	121 Low Profile Ball Grid Array (BGA)	-55°C to +125°C	T	3	Yes

ADK-2130: HI-2130 Application Development Kit

The Holt HI-2130 Application Development Kit (ADK) demonstrates the broad feature set of the HI-2130 MIL-STD-1553 Multi-Terminal IC. The 2-board assembly and C project reference design provide a ready-to-run evaluation platform demonstrating concurrent operation for any combination of Bus Controller, Bus Monitor and one or two Remote Terminals. For convenience, this kit includes IAR Systems Embedded Workbench® for ARM and a fully integrated debug interface for the ARM Cortex M3 microcontroller.

More Information

Request a Demo Kit

EV-2130mPCIe-1F: Single Channel MIL-STD-1553 Mini PCIe Card

This standalone mini PCIe card provides customers with a single channel PCIe MIL-STD-1553 interface suitable for connection to existing motherboards.

More Information

Request a Demo Kit

EV-2130mPCIe-2F: Dual Channel MIL-STD-1553 Mini PCIe Card

This standalone mini PCIe card provides customers with a dual channel PCIe MIL-STD-1553 interface suitable for connection to existing motherboards.

More Information

Request a Demo Kit

ADK-2130mPCIe-1F: Single Channel MIL-STD-1553 Mini PCIe Reference Design

This full size F2 Mini PCIe card reference design features one of Holt's HI-2130 MIL-STD 1553 multi-channel terminals with integrated transformers on a single Mini PCIe card. The card is designed to operate in a PC or single board computer with Linux OS or Windows 10 OS. The reference design includes a schematic, BOM, board layout files, PCIe interface FPGA source code, Holt API library and a sample project, enabling the user to easily port this solution to existing designs or boards. The kit also has an optional separate break-out board which connects to the PCIe card through a ribbon cable and includes cables and connectors for direct connection to the MIL-STD-1553 bus.

More Information

Request a Demo Kit

ADK-2130mPCIe-2F: Dual Channel MIL-STD-1553 Mini PCIe Reference Design

This full size F2 Mini PCIe card reference design features two of Holt's HI-2130 MIL-STD 1553 multi-channel terminals with integrated transformers on a single Mini PCIe card. The card is designed to operate in a PC or single board computer with a Linux or Windows 10 OS. The reference design includes a schematic, BOM, board layout files, PCIe interface FPGA source code, Holt API library and a sample project, enabling the user to easily port this solution to existing designs or boards. The kit also has an optional separate break-out board which connects to the PCIe card through a ribbon cable and includes cables and connectors for direct connection to the MIL-STD-1553 bus.

More Information

Request a Demo Kit

Downloads

Application Notes

AN-550 Rev. A - updated 10/5/2023
AN-6130 Design Guide Rev. New - updated 1/3/2013
AN-551 Rev. New - updated 4/26/2016
AN-576: MIL-STD-1553 Bus Controller Application Examples Rev. B - updated 3/4/2025
AN-6130-IRIG-BM: IRIG-106 Monitor Terminal Rev. New - updated 7/29/2020

Data Sheets

HI-2130 Rev. T - updated 10/5/2023

Demo Kit Quick Start Guide

QSG-2130mPCIe Rev. A - updated 7/11/2023
QSG-2130mPCIe_Win10 Rev. New - updated 7/6/2020

Demo Kit User Guide

AN-6130 Rev. D - updated 4/24/2015
AN-6131 Rev. C - updated 7/1/2016
AN-6130PCIe Rev. D - updated 11/10/2017
AN-6130-2 Rev. C - updated 3/17/2025
AN-2130 Rev. A - updated 4/20/2017
AN-2130mPCIe Rev. D - updated 3/17/2025
AN-2130mPCIe_Win10 Rev. B - updated 3/17/2025

Product Brief

HI-2130 Product Brief Rev. 3.0 - updated 11/4/2016
Mini PCIe Card Reference Design Rev. 1.0 - updated 2/5/2020

Software Guide

AN-560: RT GUI User Guide Rev. A - updated 9/11/2015
AN-570: RT Software Migration Guide Rev. New - updated 9/12/2015
AN-571: BC Software Migration Guide Rev. A - updated 1/15/2021
